Description
Adds eight RS-232 serial ports by connecting to USB port
RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
Each port is protected with 15KV ESD protection
High speed USB2.0 supported (up to 480 Mbps)

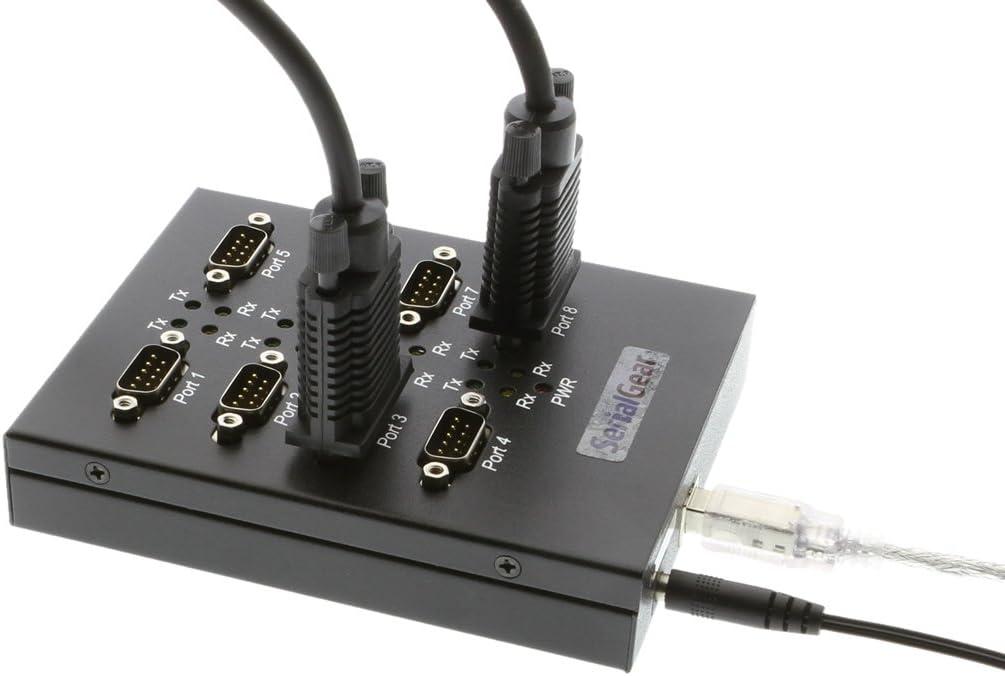

Easy plug & play installation and RS-232 device connection
Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
Features

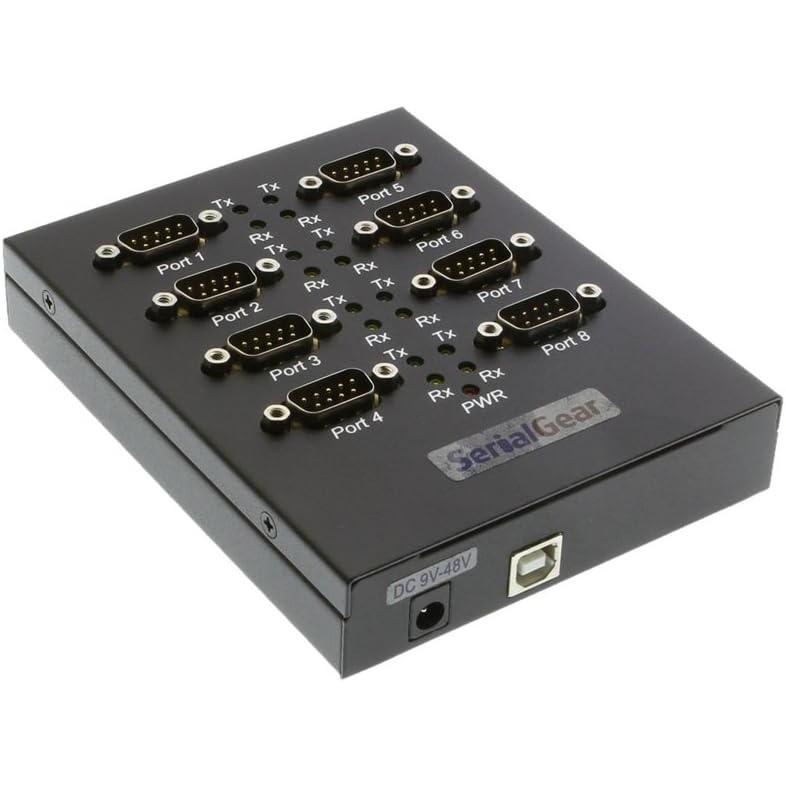

- Metal case

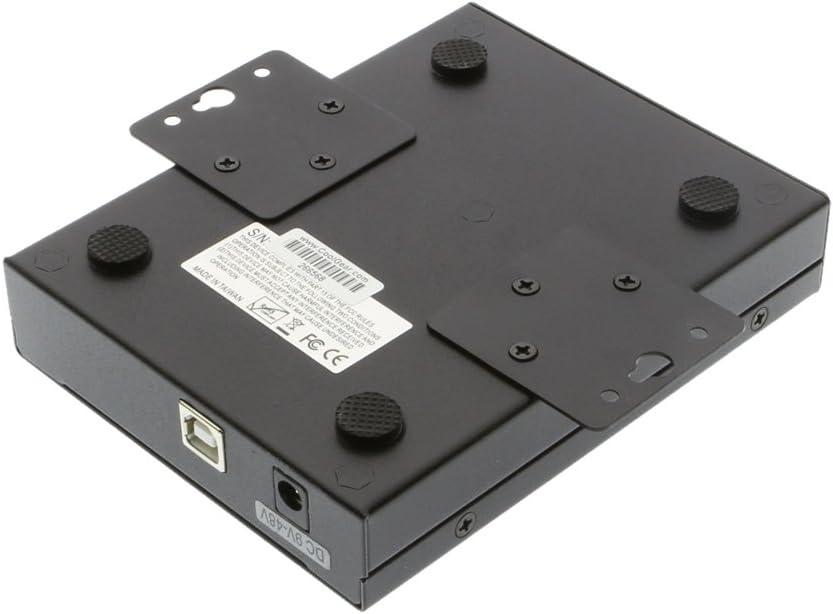

- Rackmount and DIN-Rail mountable

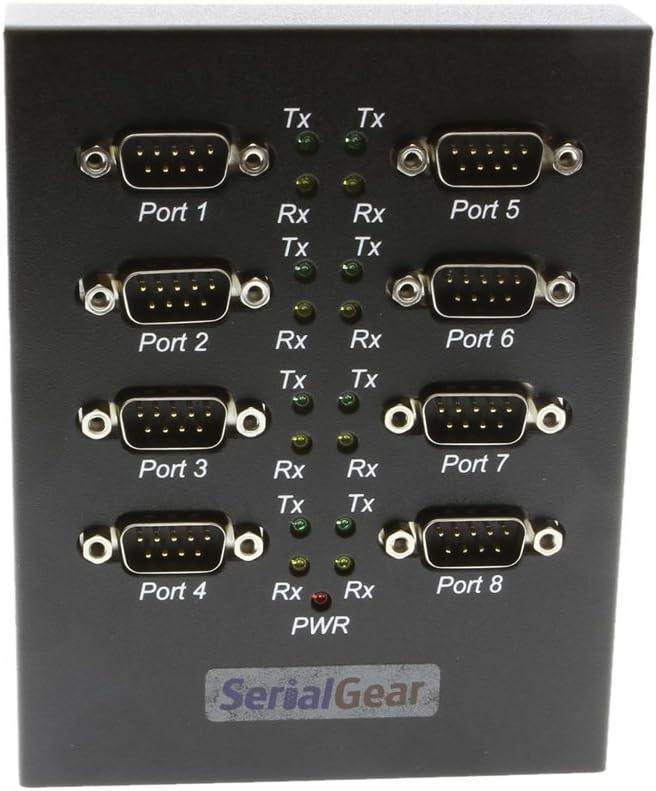

- 8 RS232 DB9 male ports
- Speed up to 921.6kbps

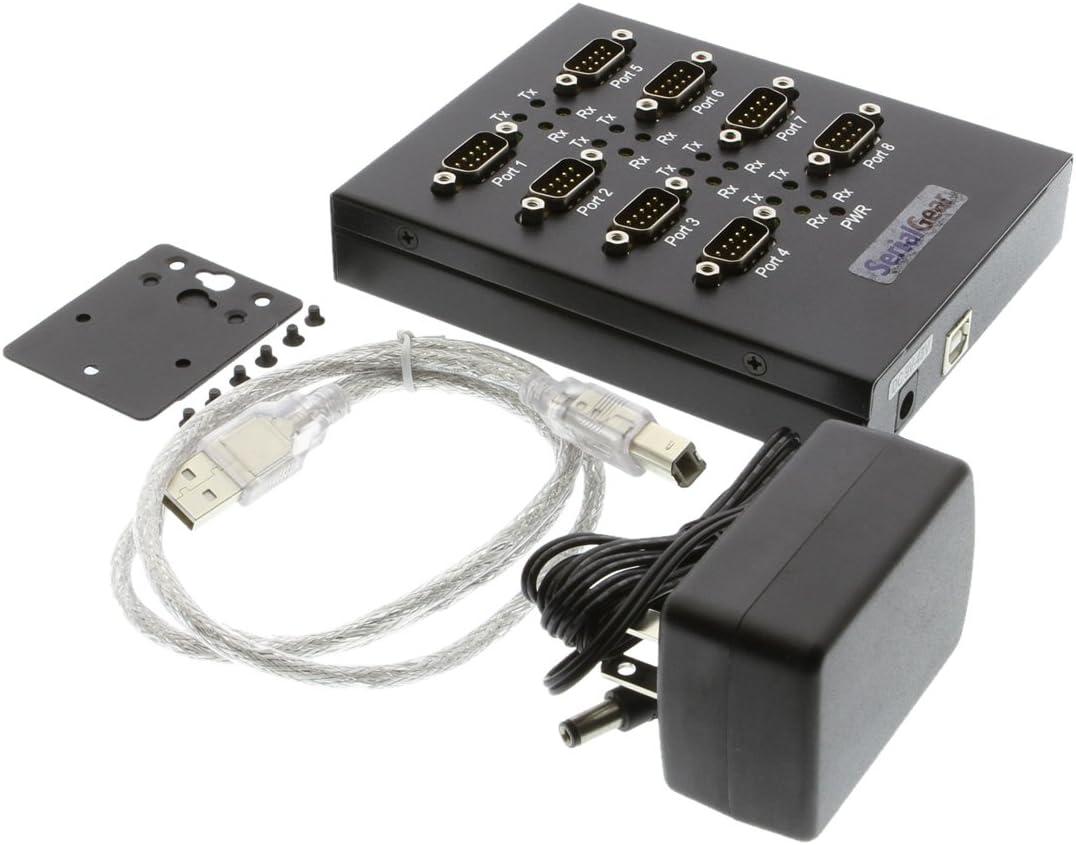

- External power supply
Specifications
- Ports 8 RS232 ports
- Speed Up to 921.6kbps
- RS232 signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS422/485 signals RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND
- Power External power supply
- Driver Windows 7,Vista,XP,2000,ME,98 Linux (Kernel 2.4 and up built-in)
- Connectors 8 DB9 male
- Dimensions 102 x 130 x 25 mm (W×L×H) 130 x 133 x 28 mm with DB9 connector and ears
