Coolgear USB2 to 8-Port RS232-422-485 Serial TB Adapter

Description

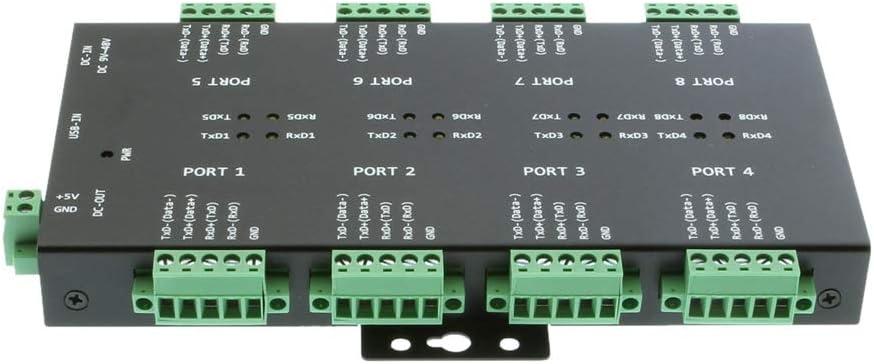

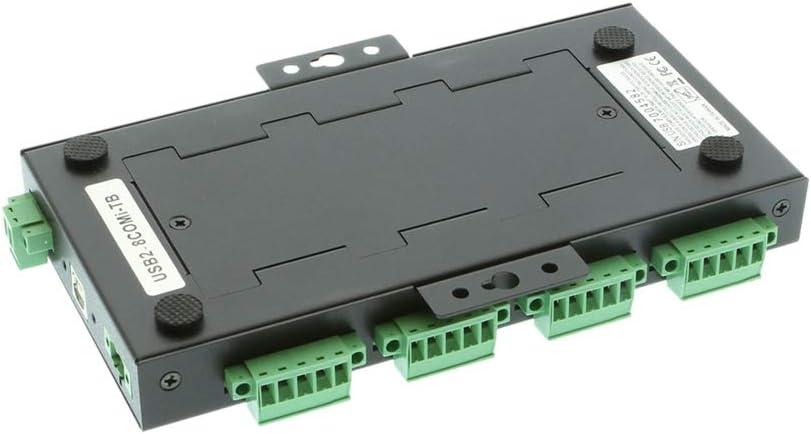

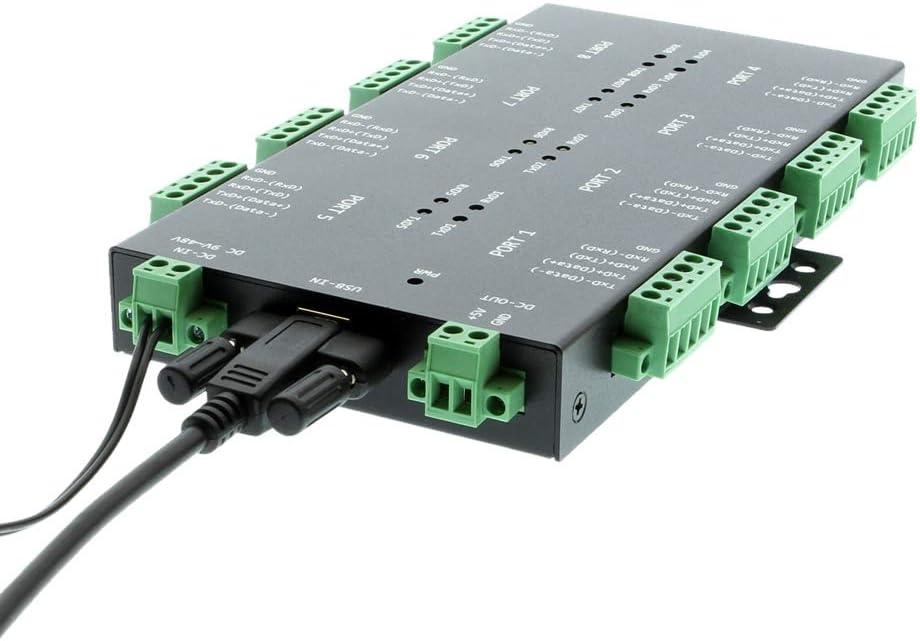

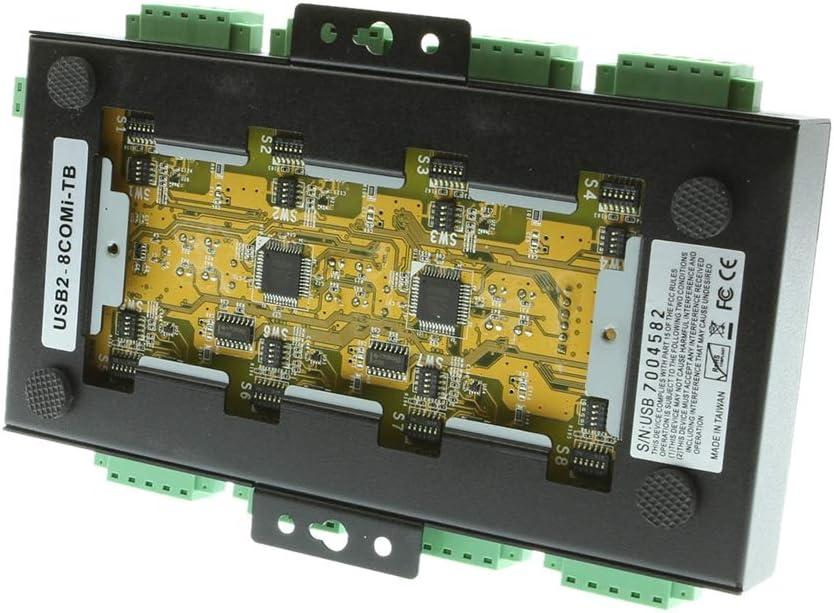

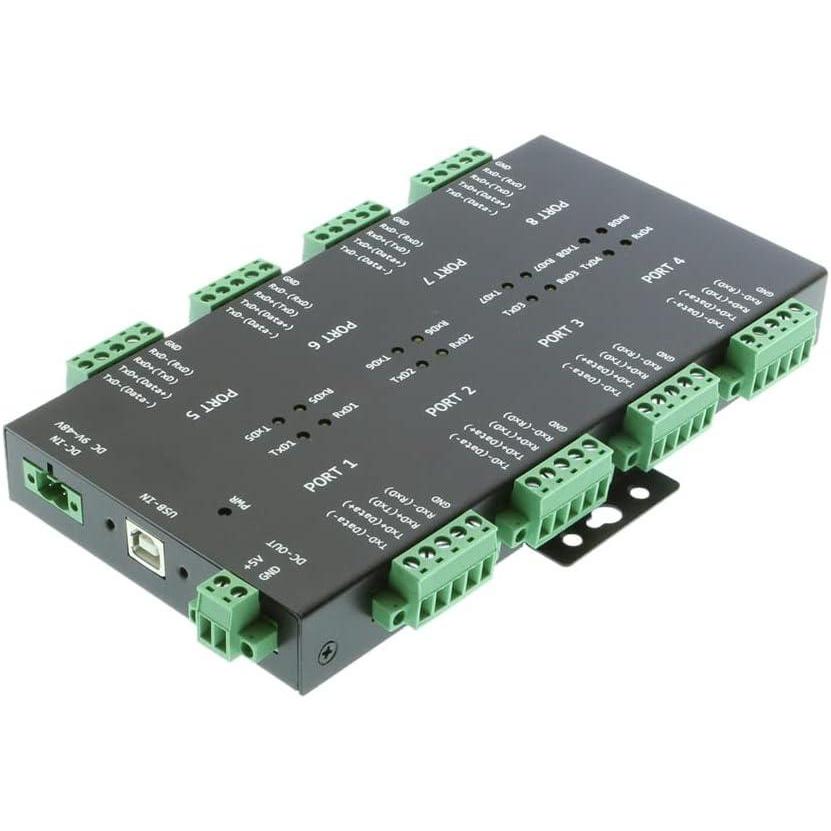

15KV ESD and 600W Surge Protection for RS-232/422/485 Ports Our series of Industrial USB 2.0 to terminal block serial adapters supports RS-232, RS-422, and RS485 electrical protection per port and are designed with the user in mind. Supports 15KV ESD protection and 600W surge protection for all 8 serial signals Uses FTDI FT4232H USB 2.0 to quad UART chip Incorporates DIP switch control over each individual port. Per port protection from ESD and Surge Protection. Description 8 RS-232/422/485 ports via terminal block connection The USB2-8COMi-TB is a USB2 to 8-port industrial serial adapter that protects your device(s) with 15KV ESD protection and 600W surge protection over each port. It is designed to make RS-422 and RS-485 serial port expansion quick and simple through its terminal block connections. Port signals are controlled by DIP switches as is the control over termination and biasing. Each serial port terminal block can be individually designated for the signal your application demands. The USB 2 to 8-port serial adapter has an industrial designed metal case where the DIP switches are located within the bottom metal access panel. By connecting to the USB port on your computer or available USB hub, the USB2 to 8-port industrial serial adapter instantly adds eight RS-232/422/485 serial communication ports to your system while taking advantage of both the Plug-and-Play, and Hot-Plug features of the USB bus. The USB2-8COMi-TB industrial serial adapter makes it very easy to add 8 industrial communication ports to your system though its terminal block interface with DIP switch controls. Product Features Adds eight high-speed RS-232/422/485 serial ports via USB connection. 2K byte receive buffer. 2K byte transmit buffer for high speed data throughput. Requires no IRQ, DMA, I/O port. Data rates: 300 bps to 921.6K bps. Each serial port supports 5-pin screw-lock-type terminal block connector. Auto-transmit buffer control for 2-wire RS-485 half-duplex operation. Biasing and Termination resistors installed on-board. Supports RS-232 3-wire signals: RxD, TxD, GND Supports RS-422, RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD- Supports RS-485 2-wire signals: data-, data+ Monitor LEDS of TxD, RxD indicating port status AC to DC-12V, 1A switching power supply included 15KV ESD protection and 600W surge protection for all serial signals Virtual COM port drivers available for Windows 11, 10, 8, 7 Industrial grade metal case with DIN-rail ears for Din-rail mounting. Chipset: Genesys GT852G 4-port USB 2.0 hub chip + FTDI FT4232H USB 2.0 to quad UART chip Dimensions: 192.42 x 122.22 x 23.60 mm (L×W×H), dimensions are to DIN rail(W), to power plug(L) Package Contents USB2-8COMi-TB serial adapter 2 pin Phoenix connector Power adapter USB cable *Surface Mounting screws not included. Specifications Product Specifications Environmental Operating Temperature 0 to 60C Performance Isolated/Surge Protected Yes Hardware Chipset FTDI Power Input Voltage +9~48V DC Software OS Support Win 10, Win 7, Win 8, Win 8.1, Win Vista Serial Attributes Serial Standards RS232, RS422, RS485 USB USB Type USB 2.0 Isolated/Surge Protected Yes Screw Lock Compatible Yes Mechanical Color Black Mounting Style Din-Rail Ports 8 Serial Ports, 1 USB Port Compliance Certifications CE, FCC Compliance RoHS, TAA Other Data Connector 5-Pin Terminal Block Weight 2.12 lbs Dimensions 11.250 × 5.687 × 2.500 in UPC: 736983902450
