Description

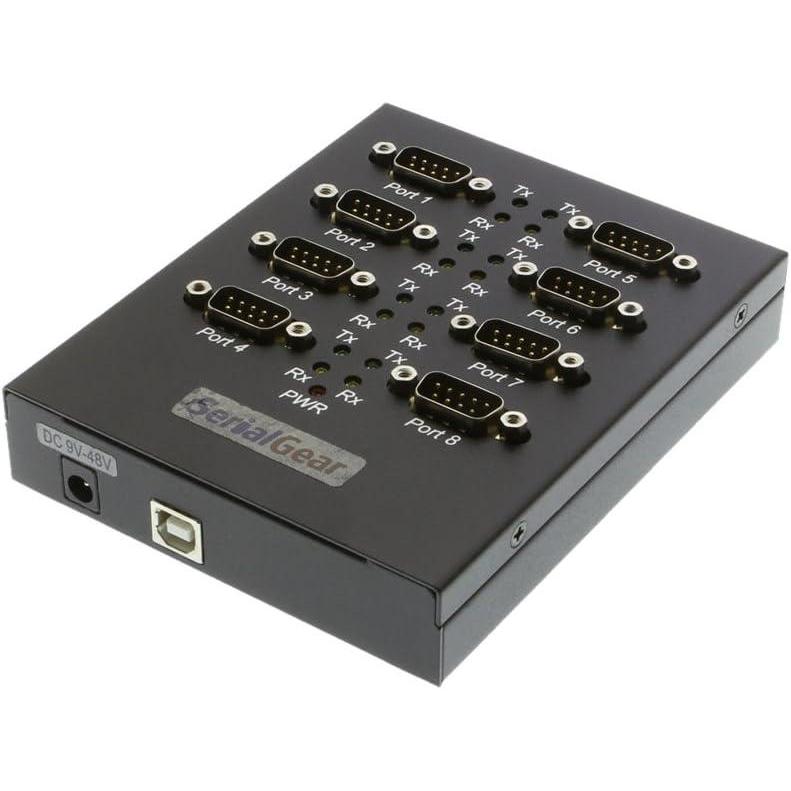

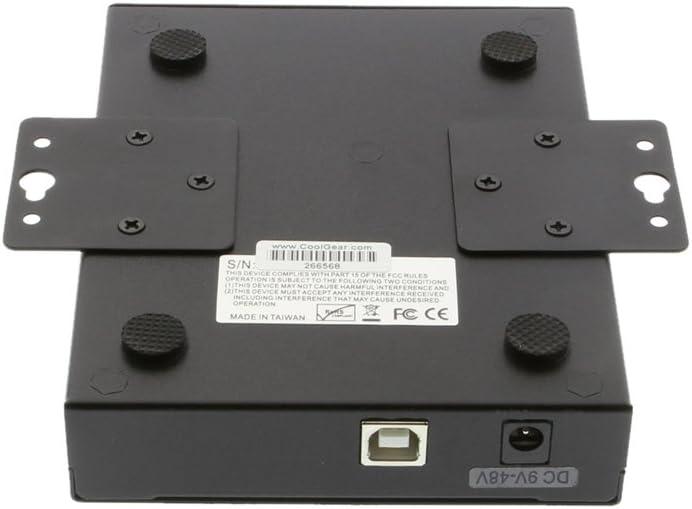

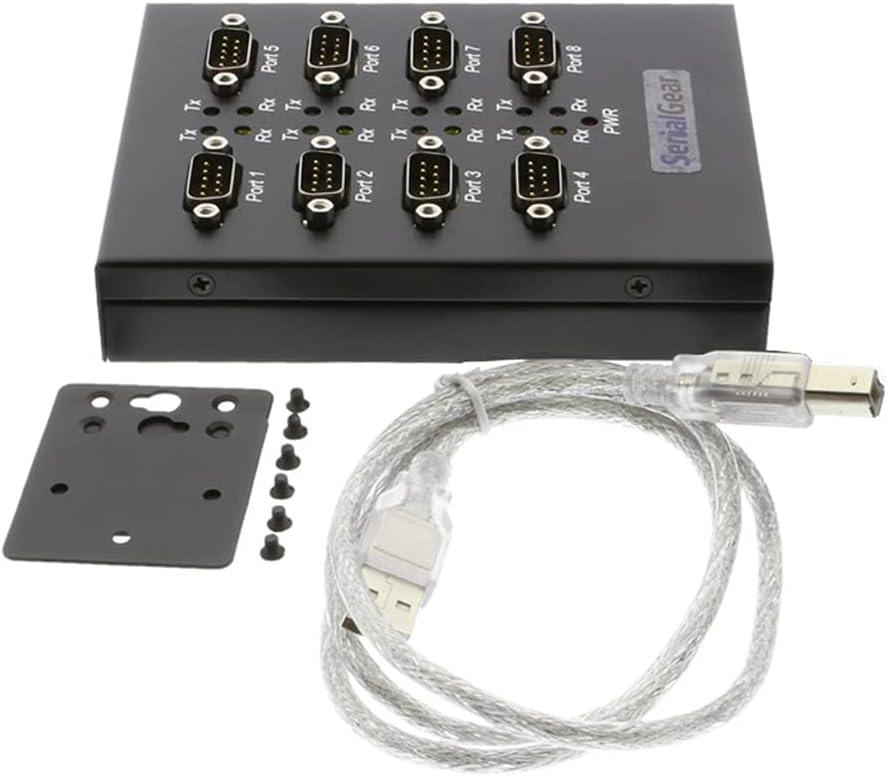

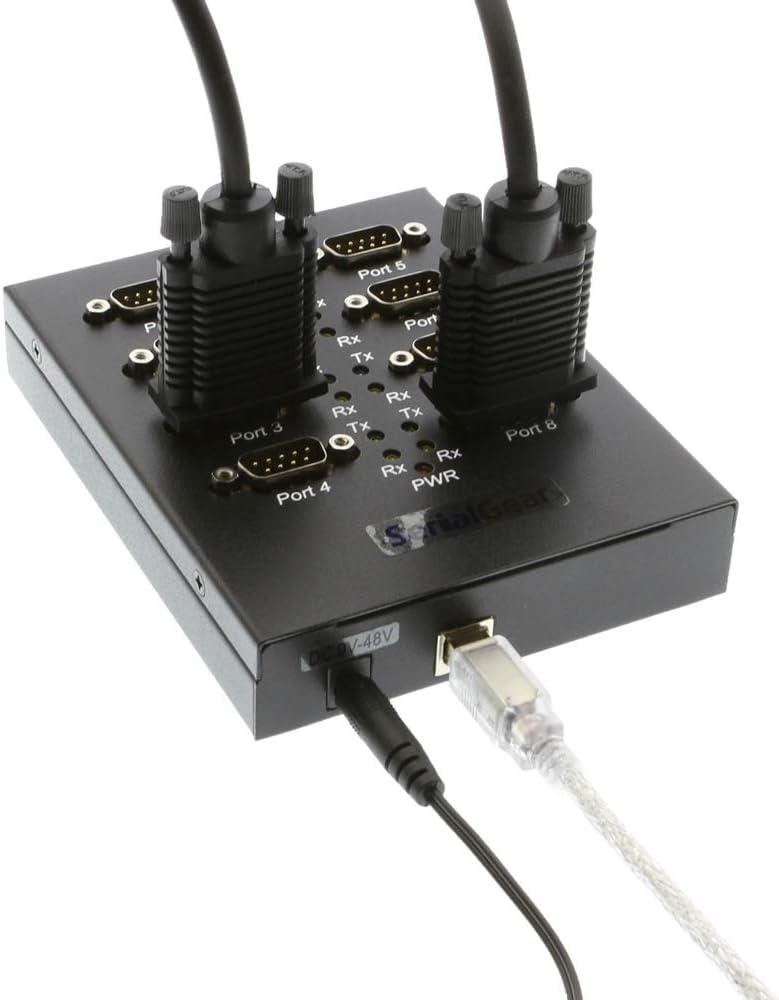

RS-232 | 128 Bytes Receive | 384 Bytes Transmit Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the serial adapter hub is perfect for installations in labs, warehouses, or heavy machinery. Safe Industrial Connections: Designed for use with Bar Code Scanners, Time Clocks, Label Printers, Point of Sale Terminals, Receipt Printers, and more the USB to Serial Adapter offers 15kV surge protection for connected devices. Expand Your Serial Capabilities: Connect 8 legacy 9-pin serial device through a USB-A port to add legacy functionality to newer technologies with no serial port connections. COM Retention: COM Ports are fully configurable, and after reboots, port assignments are preserved. USB Power: Power is drawn from a USB connection, no bulky power supply or power outlet is required. Upstream: 1 USB port, Type B Female Connector Downstream: 8 Male DB9, w/ nuts LEDs: Power, TX / RX Description Introduction: Our new industrial USB to 8-Port RS-232 Serial Adapter gives your laptop or workstation the ability to communicate between a USB (Universal Serial Bus) port and up to eight RS-232 serial Ports. The USB2-8COM-M USB Octal (8 Port) Serial Adapter is designed to take advantage of your host USB port to expand your native serial COM capabilities. The USB 2.0 to 8-Port RS-232 serial adapter instantly adds eight RS-232 serial communication ports to your system from its industry-grade construction chassis by taking advantage of the USB bus. Plugging the Industrial 8-Port Serial Adapter to the USB port, the adapter is automatically detected and installed with no need for configuration on your part. There are no IRQ & COM port conflicts, since the ports do not require any additional IRQ, DMA, memory as resources on the system. The USB 2.0 Octal Serial Adapter is provided with a switching power adapter. The USB 2.0 Octal Serial Adapter provides instant connectivity with modems, ISDN TAs, PDAs, handheld & pocket PCs, digital cameras, POS, serial printers. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-232 serial communication ports. Features: Adds eight industrial RS-232 serial ports by connecting to a USB port Installed as standard Windows COM port SECC metal chassis with DIN rail bracket Full RS-232 modem control signals and hardware/software flow control RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND High speed serial port with the baud rate up to 921.6K bps 128 byte transmit FIFO & 384 byte receive FIFO Non-standard baudrates supported LEDs of Power, TxD and RxD for easy port monitoring and diagnostics Serial port protected with surge protection of 10KV Self-powered. One switching power adapter of 12V, 1A provided. Easy plug and play installation and RS-232 device connection COM port number assigned can be changed to any COM port number required Works with USB 1.1 & 2.0 host port OS Support: Windows Windows 7, Windows 8, Windows 10, Windows 11 Linux and Mac OS 10.X Package Contents: 8-port USB 2.0 to RS-232 serial adapter Din Rail mounting plates and screws USB A to B cable *Surface Mounting screws not included. Specifications Product Specifications Environmental Operating Temperature 0C to 55C Performance Isolated/Surge Protected Yes Hardware Chipset FTDI LED Indicators Power, TX / RX Product Information Warranty 1 year from date of purchase Software OS Support Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8 Serial Attributes RS Signals TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND Serial Standards RS232 Baud Rate 921.6K bps FIFO Receive 128 bytes FIFO Transmit 384 bytes Data Bits 7, 8 Parity None, Even, Odd, Mark, Space Stop Bits 1, 2 Flow Control Hardware (RTS, CTS), XON/XOFF USB USB Type USB 2.0 Isolated/Surge Protected Yes Screw Lock Compatible Yes Mechanical Color Black Item Dimensions (L × W × H) 4.80 × 5.11 × 0.98 in. Item Weight 0.881 lbs. Mounting Style Din-Rail (Optional Bracket) Ports 8 Serial Ports Material of Construction Steel Compliance Country of Origin Taiwan Compliance RoHS, TAA Other Data Connector DB9 Male w/ Nuts Chip Model FT4232HL, GL852G, SP3243EUEA Weight 1.75 lbs Dimensions 11.25 × 5.75 × 2.5 in UPC: 729440690793
