Coolgear USB to RS232 TTL | CMOS Adapter Cable with Terminal Block

Description

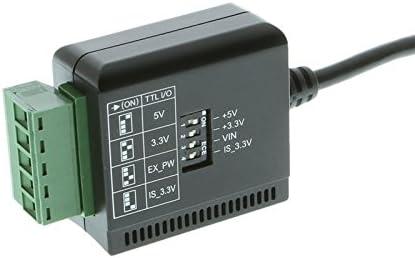

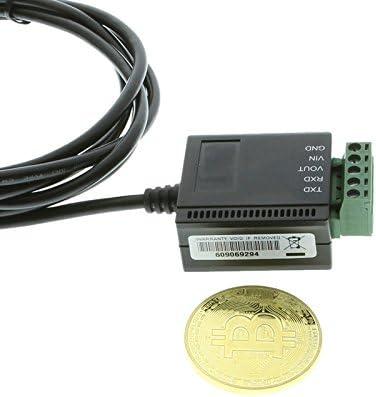

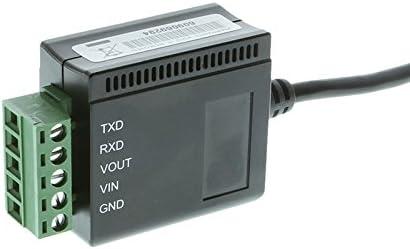

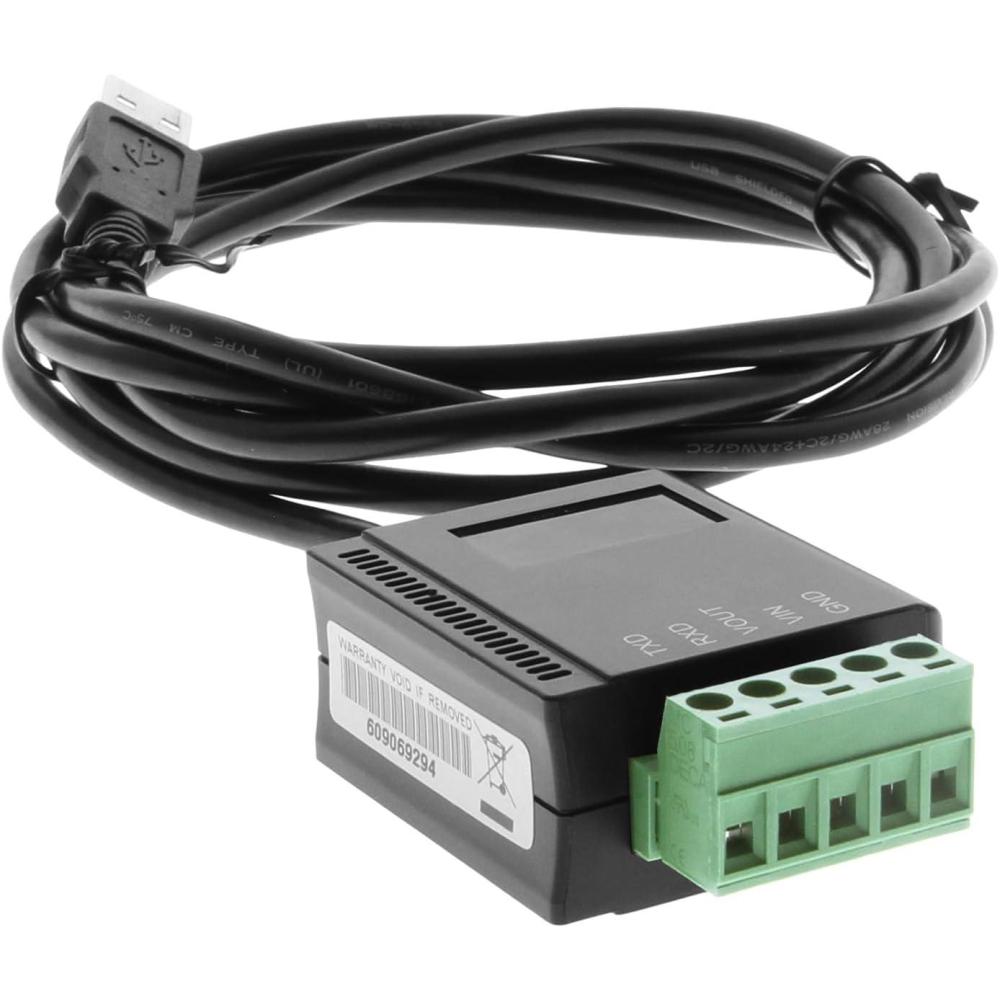

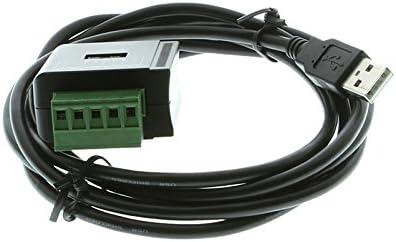

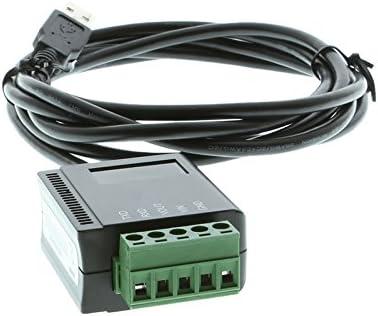

USB to RS232 TTL Cable Adapter The new USB to RS232 TTL adapter allows you to control your voltage setting as you need whether 3.3V or 5V is needed. Dip switch controls are located at the RS232 terminal block for easy access to your voltage setting. Voltage can be set for 3.3V or 5V – Voltage labels on adapter. 5ft. length allows flexible connections. 5-pin terminal block RS232 serial connection for wired applications. Fully compatible with USB 1.1 and forward compatible with USB 2.0. Description USB to RS232 TTL voltage choices just got easier! Up until now you’ve had to make a choice between USB to TTL adapters and their voltage with either or selections. This USB to RS232 TTL/CMOS adapter cable eliminates that by allowing you to choose a voltage setting right at the adapter’s connection point at the terminal block The USB-2323TTLMOS provides a USB to RS232 port with 5V/3.3V/2.5V/1.8V TTL / CMOS compatible Logic levels. The RS232 signals include TXD, RXD, and GND. The RS232 TTL cable is USB bus powered and does not need any DC power from an external AC Power Adapter. The TTL /CMOS RS232 signals are processed on the 5-pin Terminal Block. Terminal Block Configuration Pin 1 TXD (Output) Pin 2 RXD (Input) Pin 3 VOUT (Output TTL / CMOS Power) Pin 4 VIN (Input TTL / CMOS Power) Pin 5 GND (Ground for TTL / CMOS) Features Provides 1 TTL/CMOS RS232 Serial Port over USB Port Supports 3-Signal TTL/CMOS RS232 Conversion: (TXD, RXD, GND) The 2,500Vrms Isolation Model is Available Here Supports a 5-pin Terminal Blocks for TTL/COMS Signal Wiring 5V/3.3V/2.5V/1.8V Logic Level Selectable by DIP Switch Signal Levels are Similar to Standard RS232 but in TTL/CMOS Swing Level Easy Serial Port Expansion over USB Port USB1.1 and USB2.0 Forward Compatible Built-in FTDI USB UART Chip Supports Serial Speed from 300bps to 921.6Kbps Supports 7,8 Data Bits Odd, Even, Mark, Space, None parity mode Supports 1, or 2 Stop Bits Supports Win98, Me, XP, CE, 2000, 2003, 2008 Win 7, Vista, Win 8, 10 Linux and Mac OS Specifications Fully compatible with USB1.1 and Forward Compatible with USB 2.0 TTL/CMOS Serial Port Supports one 5-pin Terminal Block TTL/CMOS RS232 Serial port, the key benefits are: Logic Levels: Selectable by a DIP Switch Data Bits: 7, 8 Stop Bits: 1, 2 Parity: None, Odd, Even, Mark, Space Baud Rate: 300bps to 921.6Kbps OS Support XP, CE, 2000, 2003, Vista, Win 7, 8, 10, Linux and Mac OS Power Requirements USB Bus Powered, no External Power Supply Needed. +2.5V or +1.8V DC Power Input Required on the 5-pin Terminal Blocks in case of Supporting 2.5V or 1.8V Logic Levels Environmental Operating Temp.: -40 to 85°C (-40 to 185°F) Storage Temp: -40 to 85°C (-4 to 185°F) Operating Humidity: 5 to 95% RH Form Factor 1.77”(L)x1.65”(W)x1.15”(H) (4.49 x 4.18 x 2.20 cm) Package Contents USB to RS232 TTL CMOS Adapter Driver Disc Specifications Product Specifications Environmental Operating Temperature -40 to 85 C Serial Attributes Serial Standards RS232 USB USB Type USB 2.0 Mechanical Color Black Length 5ft Compliance Country of Origin Taiwan Compliance RoHS, TAA Other Data Connector 5-Pin Terminal Block Weight 0.412 lbs Dimensions 8.937 × 6.312 × 1.612 in UPC: 736983902375
