Description

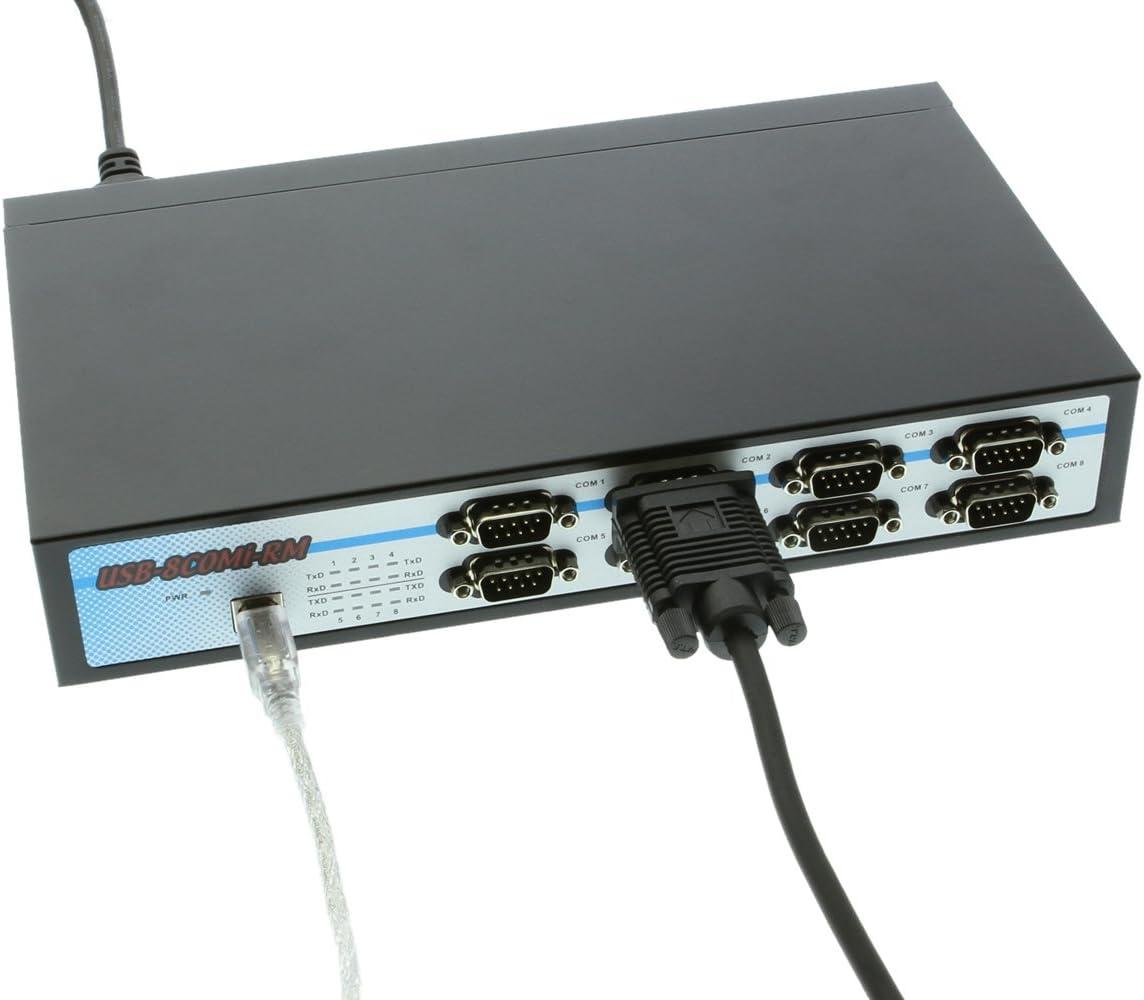

FTDI USB to Serial Adapter with Switching Power Supply Industrial Grade Rack Mount 8 Port USB RS-232, RS-422, RS485 Octal Serial Adapter with Metal Case and Built-In 100-240Volt Power Supply utilizing a FTDI chipset. Adds RS232, RS422, or RS485 Serial COM Ports to your system. DIP Switch control with 8 sets of 4-pin DIP switches to control mode settings. Utilizes a Built-in switching power supply of 100V-240V Full RS-232 modem control signals and hardware/software flow control. Description The USB-8COMi-RM 8 Port USB to RS-232/422/485 Serial Adapter is designed to make serial port expansion for industrial applications convienent and fast. Whether it’s connecting to a computer’s host USB port or USB hub, the 8 Port USB Serial Adapter instantly Adds eight RS-232, or RS-422, or RS-485 serial communication ports to your system using Plug-and-Play technology. By connecting the 8 Port USB Serial Adapter to your computer, the adapter is automatically detected and installed with no IRQ & COM port conflicts or configuration since the ports do not require any additional IRQ, DMA, memory. The adapter is self-powered, and has built-in switching power supply of 100V/240V (input) inside the chassis. The USB-8COMi-RM serial adapter is designed with 8 external 4-pin dip switches to independently set RS-232, RS-422or RS-485 mode conveniently, without the need to open the metal chassis. The adapter is with DIN rail bracket for industrial application environments and can be also mounted to a 19 rack, the rack mount kits are included with the adapter. Termination and biasing option are available for data transmission lines. The USB-to-Octal RS-232/422/485 Adapter provides instant connectivity to RS-232, RS-422, RS-485 communication devices for POS, factory automation equipment, multi-drop data collection devices, bar code readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communication in harsh environments. The USB-8COMi-RM USB to Industrial I/O provides industrial solution requiring single node or multi-drop communications over short and long distance. Additional Features: Adds eight RS-232, RS-422 or RS-485 serial ports by connecting to a USB port No need to open chassis to set operation modes-eight external DIP switches for easy RS-232, RS-422, RS-485 mode settings Installed as standard Windows COM port SECC metal chassis with both DIN rail brackets and rack-mounting kits for flexible mounting Full RS-232 modem control signals and hardware/software flow control RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND RS-422 data signals: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS- RS-485 4-wire data signals: TxD-, TxD+, RxD+, RxD- RS-485 2-wire data signals: Data-, Data+ Automatic transmit and receive control for 2-wire RS-485 half-duplex mode Built-in termination and biasing High speed serial port with the baud rate up to 921.6K bps Non-standard baud rates supported LEDs of Power, TxD and RxD for easy port monitoring and diagnostics Serial port protected with surge protection of 10KV Built-in switching power supply of 100V~240V Easy plug and play installation and RS-232/RS-422/RS-485 device connection COM port number assigned can be changed to any COM port number required Works with USB 1.1 & 2.0 host port Item Dimensions: 10.11(L) x 5.80(W) x 1.73in(H) OS Support: Windows Windows 7, 8, 10, & Windows 11 Linux and Mac OS 10.X Package Contents 1x 8 Port USB to RS-232/422/485 Octal Serial Adapter 1x Mounting Brackets 1x DiN Rail Brackets 1x 3ft. USB-A to B Device Cable 1x Three Prong Power Cord 1x Driver Disk *Surface Mounting screws not included. Specifications Product Specifications Environmental Operating Temperature 0C to 55C Storage Temperature -20 to 75°C (-4 to 167°F) Humidity 5% ~ 95% (non-condensing) Performance Isolated/Surge Protected Yes Hardware Chipset FTDI LED Indicators Power, TX / RX Product Information Warranty 1 year from date of purchase Software OS Support Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8, Win XP Serial Attributes RS Signals Data-, Data+, GND, TxD-, TxD+, RxD+, RxD-, GND, TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-, TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND Serial Standards RS232, RS422, RS485 Baud Rate 921.6K bps FIFO Receive 384 bytes FIFO Transmit 128 bytes Data Bits 5, 6, 7, 8 Parity None, Even, Odd, Mark, Space Stop Bits 1, 1.5, 2 Flow Control Hardware (RTS, CTS), XON/XOFF USB Upstream USB Ports 1 Type-B Female USB Isolated/Surge Protected Yes Mechanical Color Black Mounting Style Rack Mount Ports 8 Serial Ports Material of Construction Metal Compliance Country of Origin Taiwan Certifications CE, FCC Compliance RoHS, TAA Other Data Connector DB9 Male w/ Nuts Chip Model FT2232D, GL852, MAX3089E, ZT213LFEA Warranty 1 year from date of purchase Weight 4.5 lbs Dimensions 16 × 8.5 × 2.5 in UPC: 729440690984 Technical Technical Specifications: USB Bus Compliance USB 1.0/1.1 compliant, USB 2.0 compatible Speed 12 Mbps, full-speed USB FIFO 128 byte transmit FIFO 384 receive FIFO Serial Interface Port Type RS-232/RS-422/RS-485 selectable Number of Ports 8 Connectors DB9 male Serial Line Protection ESD Protection 10KV Serial Port Speed Baudrate 300 bps to 921.6k bps Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS, XON/XOFF Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI RS-422 TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND, RTS-(A), RTS+(B), CTS+(B), CTS-(A) RS-485-4 wire TxD-(A), TxD+(B), RxD+(B), RxD-(A), GND RS-485-2 wire Data-(A), Data+(B), GND Driver Support OS Windows 7, Vista, 2003, XP (WHQL certified) and 2000 Linux Kernel 2.4 and up built-in support Power Supply Input Self-powered Built-in AC to DC switching power supply with wide Range of AC input from 100VAC to 240VAC Mechanical Chassis SECC metal chassis with DIN rail bracket Rack-mounting brackets included Environmental Operating Temperature 0 to 55 °C (32 to 131 °F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 75 °C (-4 to 167 °F) RS-232 & RS-422 & RS-485 DB9 Male Connector Pin-outs RS-232 DB9 Male RS-232 Signal Pin-outs of DB-9 Male Pin Signal 1 DCD 2 RxD 3 TxD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI RS-422 DB9 Male RS-422 Signal Pin-outs of DB-9 Male Pin Signal 1 TxD- (A) 2 TxD+(B) 3 RxD+(B) 4 RxD- (A) 5 GND 6 RTS- (A) 7 RTS+(B) 8 CTS+(B) 9 CTS- (A) RS-485 DB9 Male RS-485 4-Wire (Full duplex) Signal Pin-outs of DB-9 Male Pin Signal 1 Tx- (A) 2 Tx+(B) 3 Rx+(B) 4 Rx- (A) 5 GND RS-485 2-Wire (Half duplex) Signal Pin-outs of DB-9 Male Pin Signal 1 Data- (A) 2 Data+(B) 5 GND RS-422 Signal Wiring Point-to-Point 4 Wire Full Duplex USB-8COMi-RM RS-422 Device RS-422 with Handshaking USB-8COMi-RM RS-422 Device RS-485 Signal Wiring Point-to-Point 4-Wire Full Duplex USB-8COMi-RM RS-485 Device Multidrop RS-485 2-Wire Half-duplex USB-8COMi-RM RS-485 Device
