Description

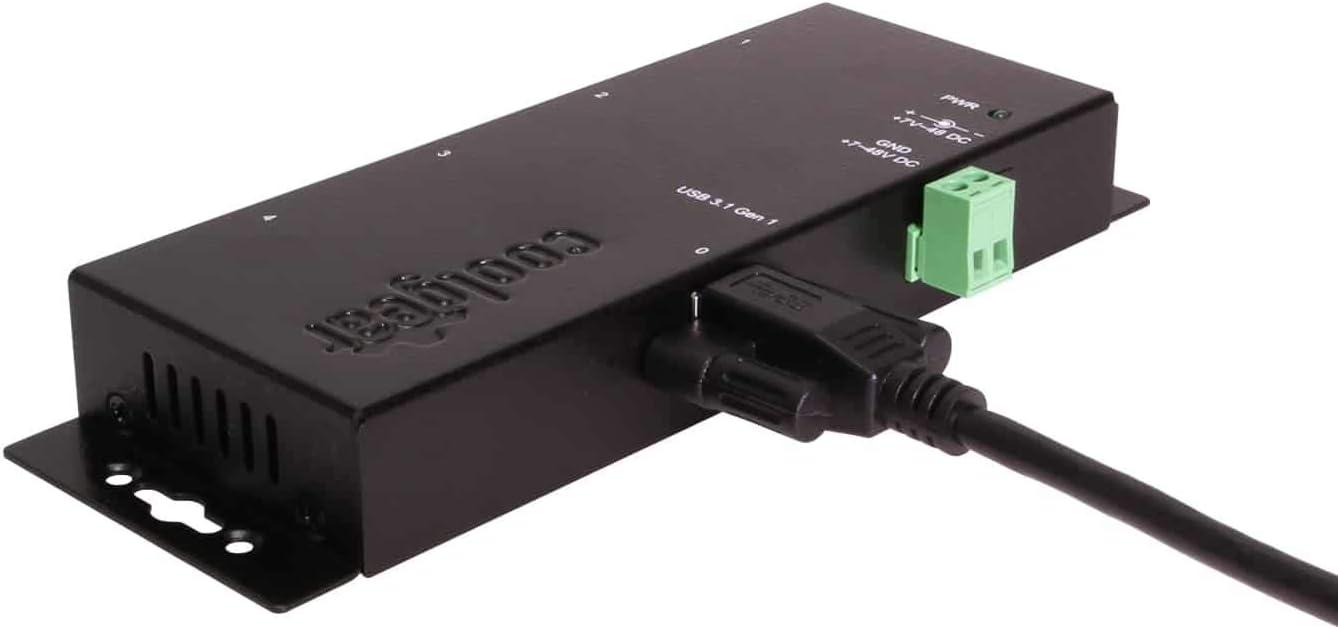

[ Compact Design ] : Slim form factor fits neatly into any workspace, making it ideal for crowded desks or smaller setups. Each port features screw locking for safe and secure USB connections.

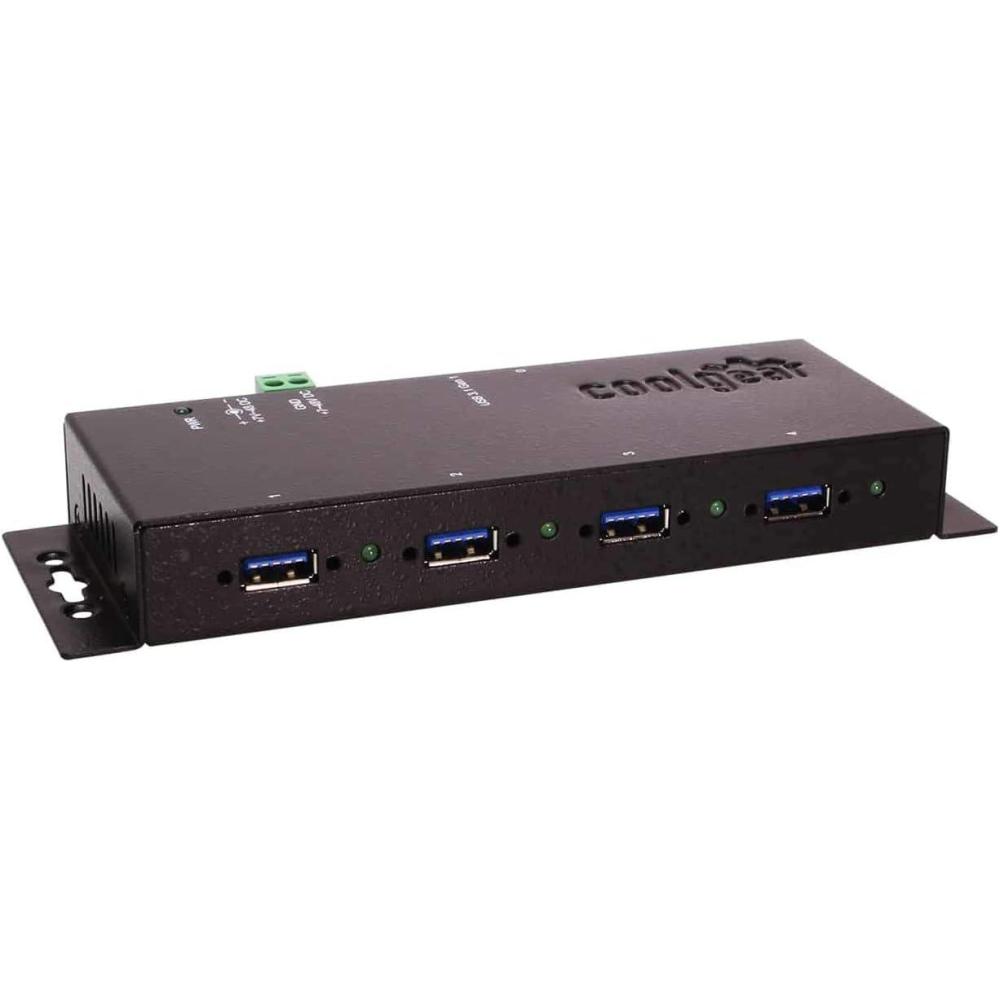

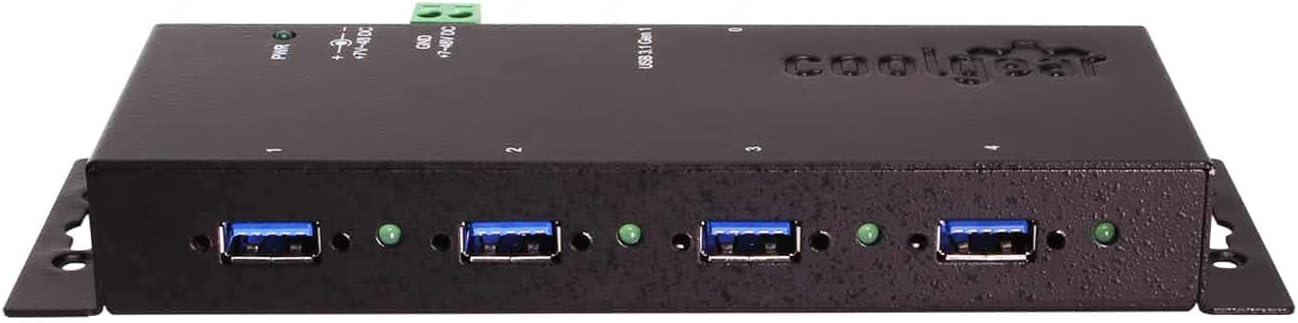

[ High-Speed Data Transfer ] : Connect up to four USB devices, including printers, keyboards, and external hard drives. Enjoy fast 5Gbps USB 3.2 Gen 1 data rates, perfect for seamless file transfers and peripheral management, with backwards compatibility for 480Mbps, 12Mbps, and 1.5Mbps speeds.
[ Purpose-Built ] : Features Multiple Transaction Translator (MTT) architecture to handle device speeds efficiently, and 15 KV ESD surge protection per port for device protection.
[ Power Monitoring ] : Each port provides 1.5A power simultaneously, and built-in LED indicators on each port provide instant feedback on device power status.

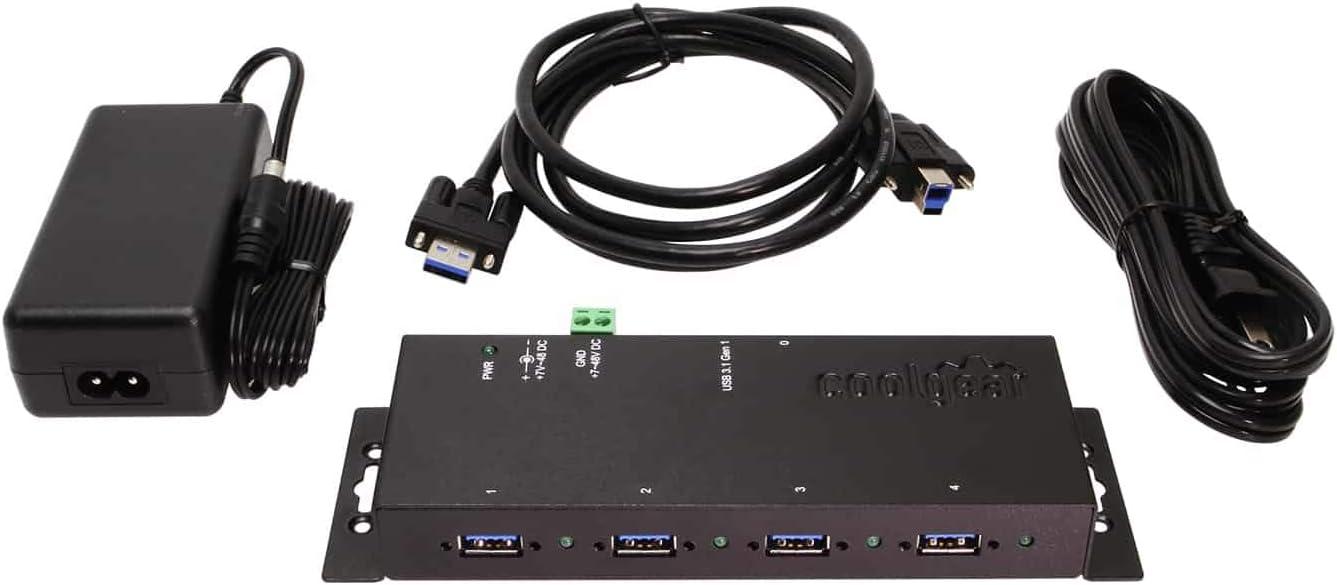

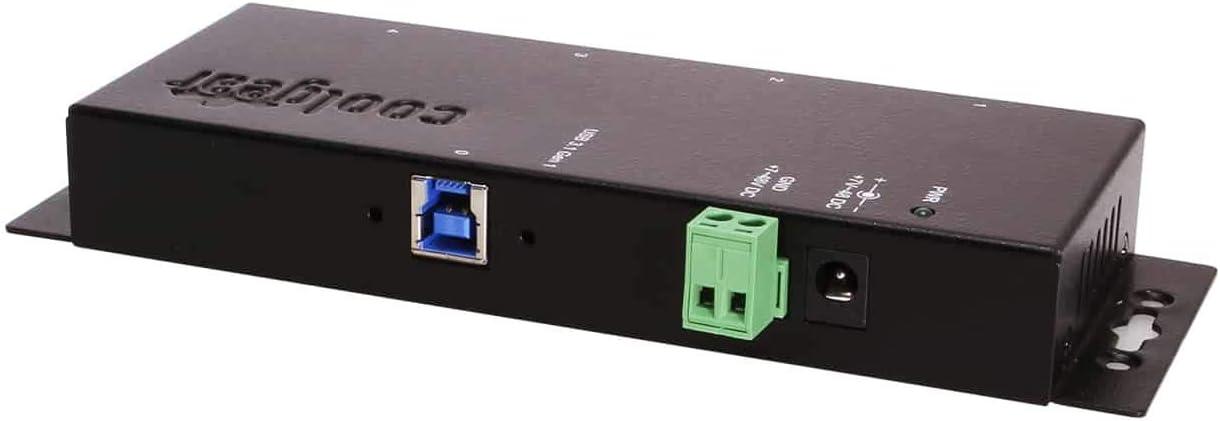

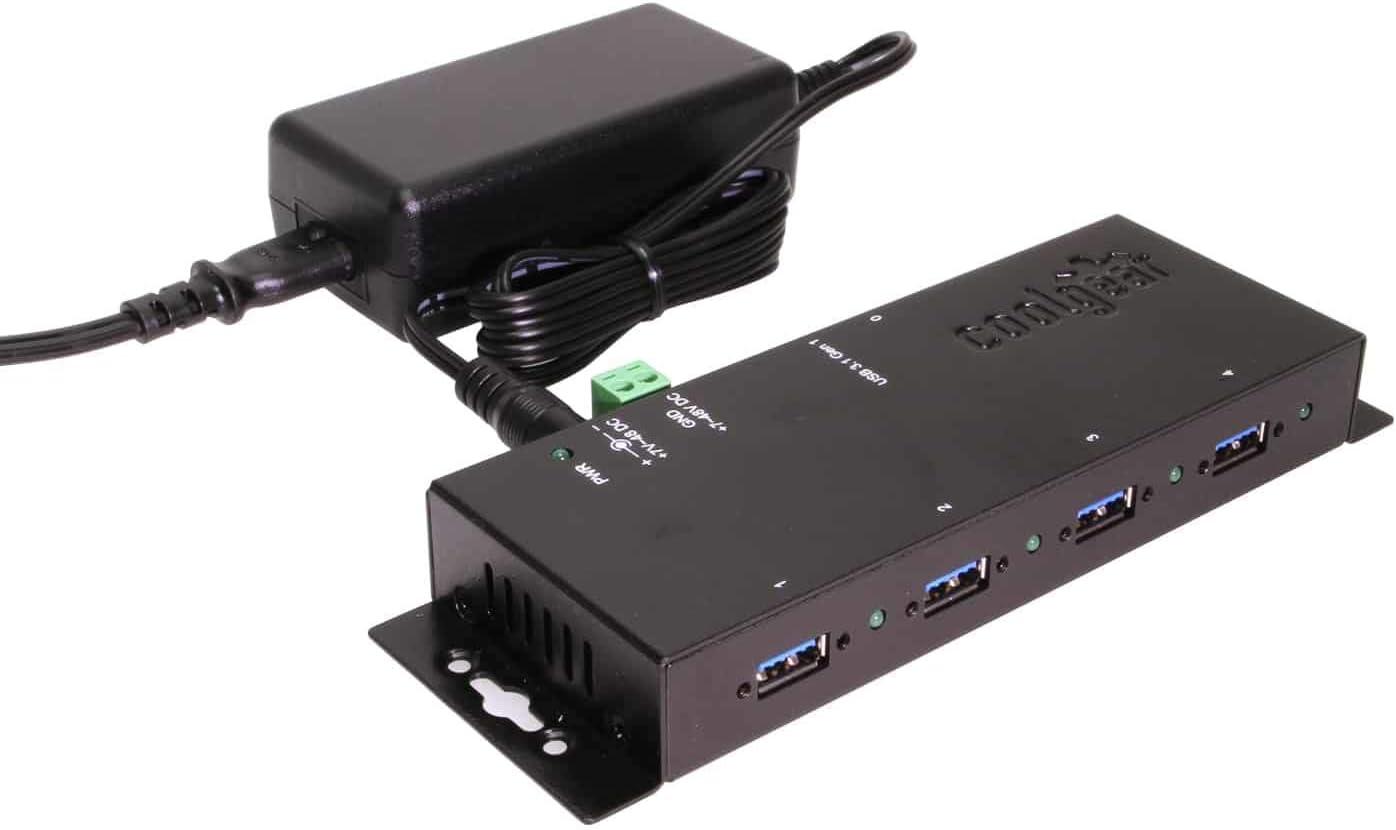

[ Connectivity ] : Upstream: 1 USB Type B Port | Downstream: 4 USB Type A Ports | Power Connector: 7-24V DC 2-pin Terminal Block or DC Barrel Jack | DC Barrel Power Adapter Included.
[ Why Coolgear? ] : Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
The USBG-3X4MR2 is an USB 3.2 G1 Hub that comply with the Universal Serial Bus (USB) Specifications Revision 3.2 generation 1 and works at speeds up to 5Gbps. It provides 4 downstream facing ports with standard A-type USB3 screw-lock connectors. With the USB3 controller, it works backward compatible either when any one of downstream port is connected to an USB2.0/1.1 compliant device, or when the upstream port is connected to a USB 2.0/1.1 compliant host. The USBG-3X4MR2 provides a unique self-power mode to work with wide range (+7~24V) input DC power from its terminal blocks. It supports USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP). Since the USB is the most popular external port for the devices to connect to PCs, the USBG-3X4MR2 provides an ideal solution to expand your USB ports immediately and save your investment.
