Coolgear DB9 Female 9-Pin to Terminal Block Adapter

Description

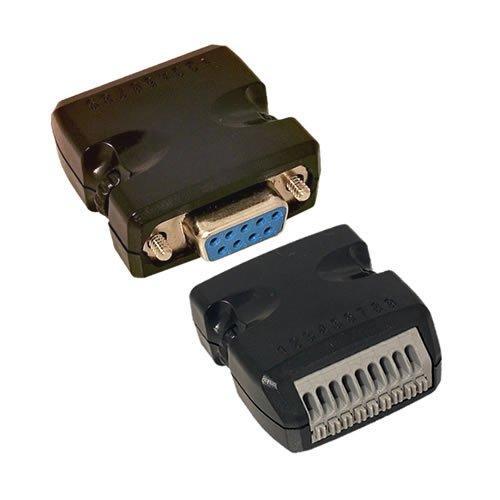

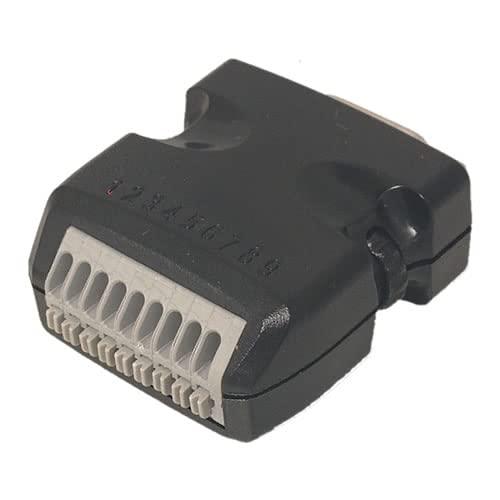

Terminal Block Connector This Screw-less terminal block adapter is designed for fast and easy connection from DB9 female to spring clamp terminal block wiring for RS-422 / 485 in one small convenient package. Converts the DB9 Male input connected to the Female DB-9 serial port to a terminal block connection for fast easy wiring applications. Supports screw-less wiring with complete RS422 or RS485 data signals. Extremely compact terminal block connector reduces bulky adapters when needed. Easy identification on the adapter for 9 signal pins. Description DB9 Female to Screw-less 9-Pin Terminal Block Adapter The TB-DB9PIN9 is a DB9 Female to (9-Pin Terminal Block Adapter) that conveniently provides an immediate solution to convert a DB-9 Male serial port to a terminal block for fast and easy wiring in RS-422 and RS-485 applications. The screw-less terminal block wiring provides complete Data signals for connecting RS-422/485 field wiring to a serial port. The nine signals of the terminal block are connected directly to the 9 pins of the DB9 female connector. The Terminal Block Wiring is marked on the adapters enclosure to ensure easy signal identification. DB9 Pin Terminal Block Adapter Features & Specifications Converts DB9 female to 9-pin terminal block Screw-less terminal block with spring clamps for easy and fast wiring Terminal block provides complete 9 signals connecting directly to the 9 pins of the DB9 female connector Terminal Block Wire range: Solid/Stranded wire (AWG): 20-26 Wire strip length: 8.5-10.0 mm / 0.34-0.39 inch Power Rating: DB9: 250V, 1.5A. Terminal Block: 300V, 2A Operating temperature: -40°C to 115°C ( -40°F to 239°F ) Dimensions 35 (L) x 43 (W) x 17 (H) mm 1.38 (L) x 1.69 (W) x 0.67 (H) inch Specifications Product Specifications Identifier UPC 736983900784 Mechanical Color Black Weight 0.087 lbs Dimensions 4.750 × 3.375 × .750 in UPC: 736983900784
