Product Description

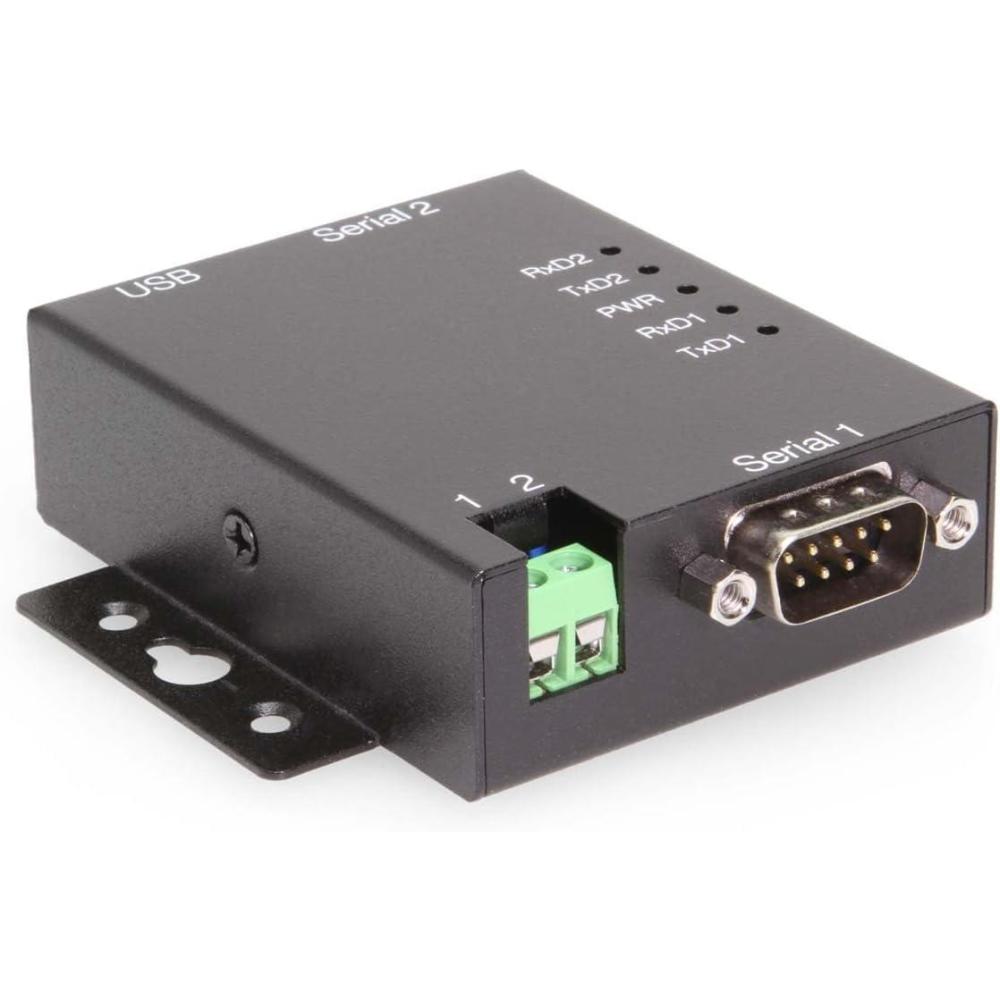

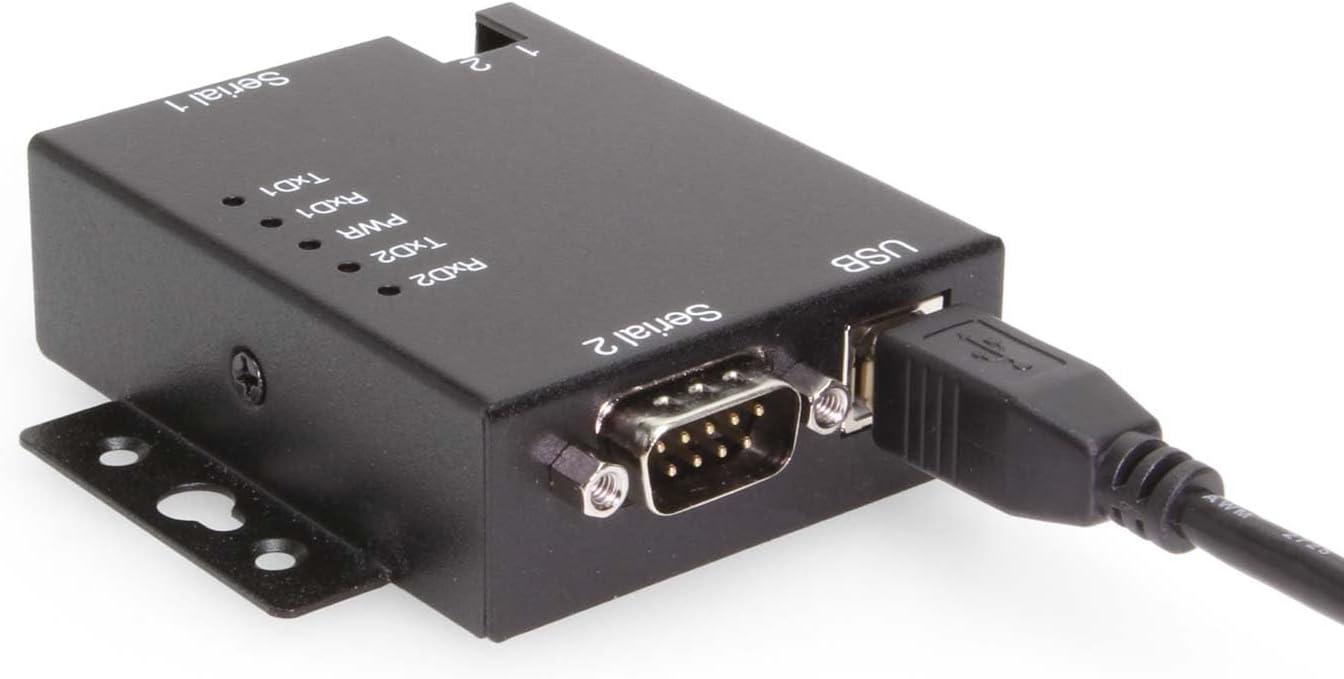

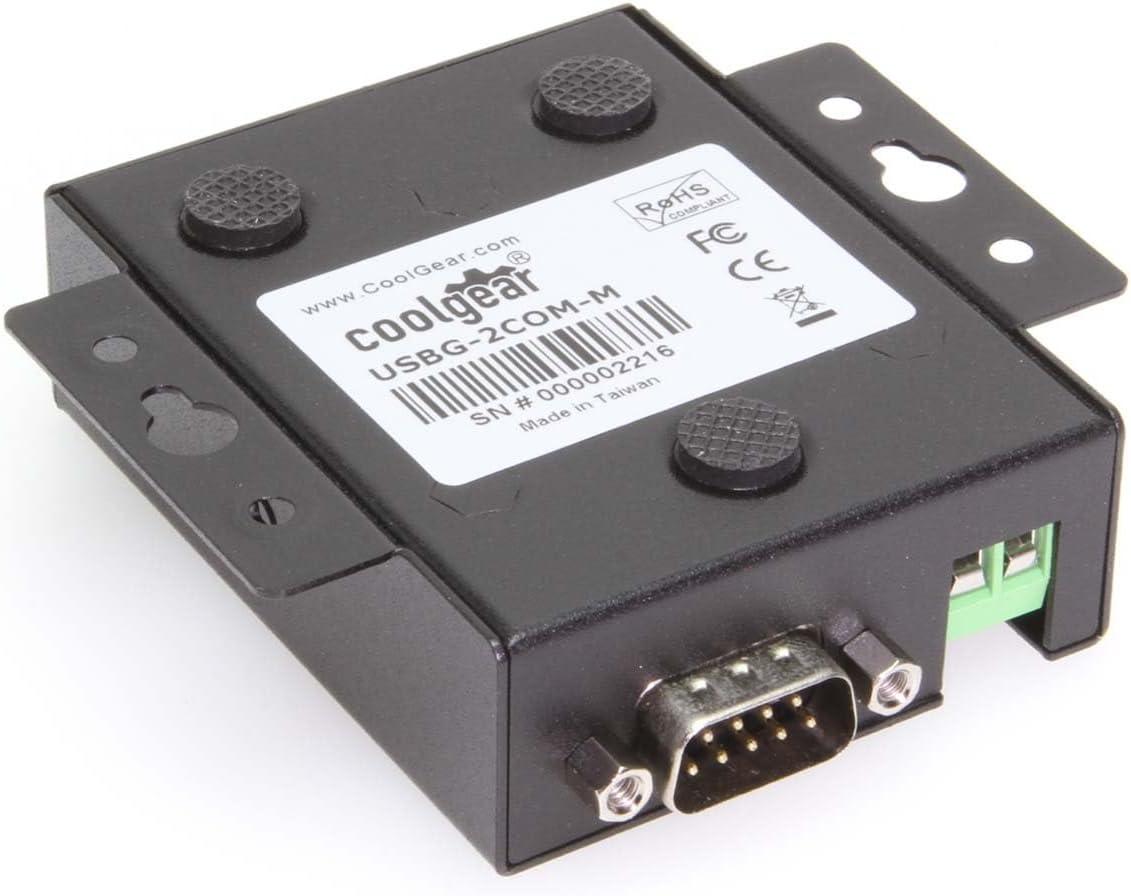

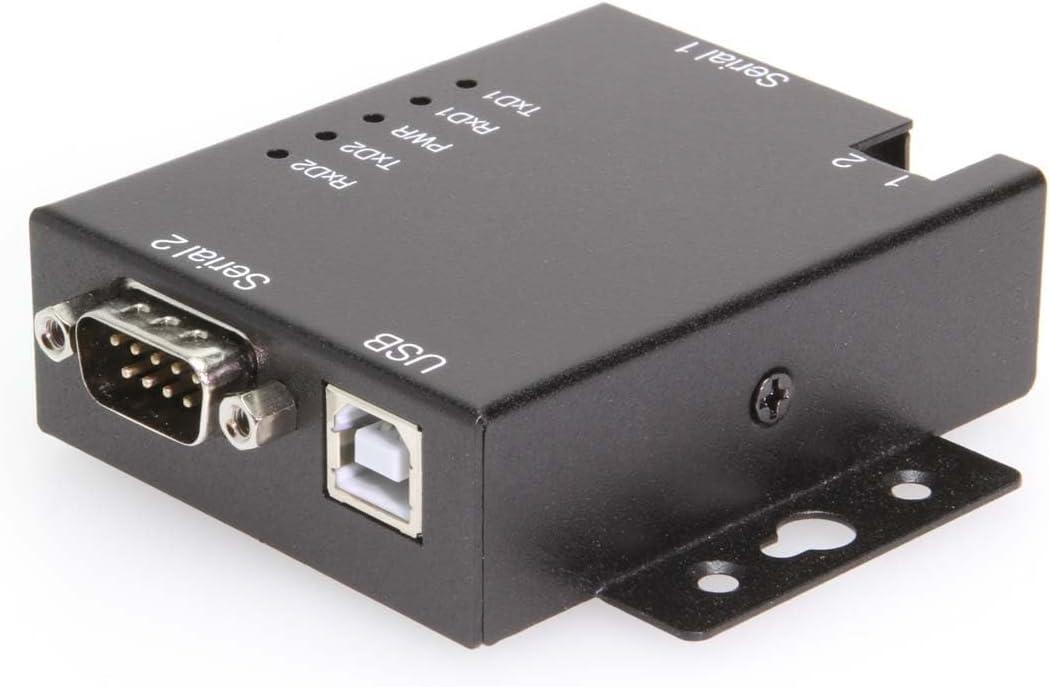

RS-232 | 128 Bytes Receive | 384 Bytes Transmit Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the serial adapter hub is perfect for installations in labs, warehouses, or heavy machinery. Safe Industrial Connections: Designed for use with Bar Code Scanners, Time Clocks, Label Printers, Point of Sale Terminals, Receipt Printers, and more the USB to Serial Adapter offers 15kV surge protection for connected devices. Expand Your Serial Capabilities: Connect 2 legacy 9-pin serial device through a USB-A port to add legacy functionality to newer technologies with no serial port connections. COM Retention: COM Ports are fully configurable, and after reboots, port assignments are preserved. USB Power: Power is drawn from a USB connection, no bulky power supply or power outlet is required. Upstream: 1 USB port, Type B Female Connector Downstream: 2 Male DB9, w/ nuts LEDs: Power, TX / RX Description Introduction: The USB-2COM-M 2 Port USB to Serial RS-232 DB-9 Adapter is designed for industrial applications with its metal housing and mounting brackets to make serial port expansion quick and simple. When connecting to a host USB port on your computer or USB hub, the USB to Serial Dual Port Adapter instantly adds two RS-232 serial communication ports to your system for current and future serial applications. Connection the USB to Serial Adapter to the host USB port, the adapter is automatically detected and installed. There are no IRQ & COM port conflicts or configurations since the ports do not require any additional IRQ, DMA, memory as resources on the system. An optional feature to supply power output of 5V, 150mA through PIN-1 & 2 of terminal block to the serial devices requiring power. The 2 Port USB to Serial RS-232 DB-9 Adapter provides instant connectivity with modems, ISDN TAs, PDAs, handheld & pocket PCs, digital cameras, POS, serial printers. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-232 serial communication ports. Features: Adds two industrial RS-232 serial ports by connecting to a USB port Optional feature to supply power output of 5V, 150mA through PIN-1 & 2 of terminal block to the serial devices requiring power Installed as standard Windows COM port SECC metal chassis with DIN rail bracket Full RS-232 modem control signals and hardware/software flow control RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND High speed serial port with the baud rate up to 921.6K bps 128 byte transmit FIFO & 384 byte receive FIFO Non-standard baudrates supported LEDs of Power, TxD and RxD for easy port monitoring and diagnostics Serial port protected with surge protection of 15KV Powered by USB port, no external power adapter required Easy plug and play installation and RS-232 device connection COM port number assigned can be changed to any COM port number required Works with USB 1.1 & 2.0 host port Item Dimensions: 2.84(L)(3.24in DB-9 to DB-9)x2.28(W)x.877in(H) OS Support: Windows XP, Vista, Windows 7, Windows 8, and Windows 10 Linux and Mac OS 10.X Package Contents: 2 Port USB to Serial RS-232 DB-9 Adapter Device. 3 foot USB A to B device cable. Driver Disc/Manual. (not shown) *Surface Mounting screws not included. Specifications Product Specifications Environmental Operating Temperature 0°C to 55°C (32°F to 131°F) Storage Temperature -20 to 75°C (-4 to 167°F) Humidity 5% ~ 95% (non-condensing) Performance ESD Protection 15KV Surge Protection Hardware Chipset FTDI LED Indicators Power, TX / RX Product Information Warranty 1 year from date of purchase Power Adapter Output Current 150mA Adapter Output Voltage 5V External Power Required No Software OS Support Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8 Serial Attributes RS Signals DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI Serial Standards RS232 Baud Rate 921.6K bps FIFO Receive 128 bytes FIFO Transmit 384 bytes Data Bits 7, 8 Parity None, Even, Odd, Mark, Space Stop Bits 1, 1.5, 2 Flow Control Hardware (RTS, CTS), XON/XOFF USB USB Type USB 2.0 Upstream USB Ports 1 Type-B Female USB Screw Lock Compatible Yes Mechanical Color Black Item Dimensions (L × W × H) 2.83 × 2.24 × 0.87 in. Item Weight 0.306 lbs. Mounting Style Din-Rail Mount, Surface Mount Ports 2 Serial Ports Material of Construction Steel Compliance Country of Origin Taiwan Compliance RoHS, TAA Other Data Connector DB9 Male w/ Nuts Chip Model FT2232D, ZT213LFEA Warranty 1 year from date of purchase Alias Sku USBG-2com-m Weight .65 lbs Dimensions 5 × 4 × 2.5 in UPC: 729440690748
From the Manufacturer
Introduction
The USB-2COM-M USB Dual Serial Adapter is designed for serial port expansion. Connecting to a USB port on your computer or USB hub, the USB Dual Serial Adapter adds two RS-232 serial COM ports to your system. The USB Dual Serial Adapter makes it easy to add serial ports and serial devices to your system with easy plug-and-play and hot plug features.
Serial Adapter Operation
The adapter is automatically detected and installed. There are no IRQ & COM port conflicts. The USB Quad Serial Adapter is self-powered, and one external power adapter is included.
Instant Serial Connection: The USB Dual Serial Adapter provides instant connectivity with modems, ISDN TAs, PDAs, digital cameras, and POS. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-232 serial communication.
Features
- Optional feature to supply power output of 5V, 150mA through PIN-1 & 2 of terminal block to the serial devices requiring power
- Installed as standard Windows COM port
- SECC metal chassis with DIN rail bracket
- Full RS-232 modem control signals and hardware/software flow control RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
- High speed serial port with the baud rate up to 921.6K bps
- 128 byte transmit FIFO & 384 byte receive FIFO
- Non-standard baudrates supported
- LEDs of Power, TxD and RxD for easy port monitoring and diagnostics
- Serial port protected with surge protection of 10KV
- Powered by USB port, no external power adapter required
- Easy plug and play installation and RS-232 device connection
- COM port number assigned can be changed to any COM port number required
- Works with USB 1.1 & 2.0 host port
